Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Fully Automatic |
|---|---|---|---|
| Wire Diameter: | 1.6-3.5mm | Speed:: | 25r/min |
| Power: | 22 KW | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Max Width: | 4300mm | Twisting:: | 3 |
| Highlight: | gabion wire mesh machine,gabion making machine |
||

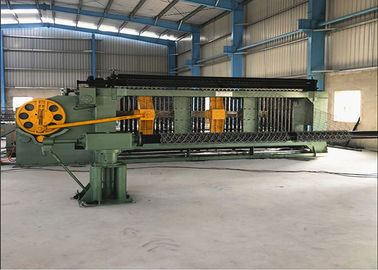

Customized Mesh Size Gabion Mesh Machine For Producing Gabion Mesh Box
Description

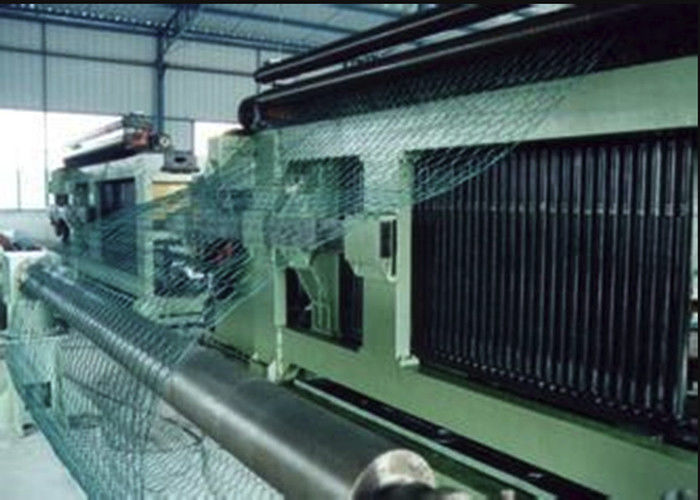

Gabion mesh machine is also called heavy duty hexagonal wire mesh machine or gabion box machine,
which is to produce the hexagonal wire mesh for reinforcement stone box use. Our machine has several
models for different sizes of meshes and the maximum netting width is up to 4300mm. We can accept any
special orders from clients.
Technical Parameters
| Model | Mesh Size | Max.Width | Wire diameter |
Twisting Number |
Main drive shaft speed | Motor Capacity | Theoretical speed |
| / | mm | mm | mm | / | / | / | m/h |
| LNWL23-60-2 | 60*80 | 2300 | 1.6-3.0 | 3 | 25 | 11 | 165 |
| LNWL23-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL23-100-2 | 100*120 | 1.6-3.5 | 225 | ||||
| LNWL23-1200-2 | 120*150 | 1.6-3.2 | 20 | 255 | |||
| LNWL33-60-2 | 60*80 | 3300 | 1.6-2.8 | 25 | 15 | 165 | |
| LNWL33-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL33-100-2 | 100*120 | 1.6-3.2 | 225 | ||||
| LNWL33-120-2 | 120*150 | 1.6-3.5 | 20 | 255 | |||
| LNWL43-60-2 | 60*80 | 4300 | 1.6-2.8 | 25 | 22 | 165 | |
| LNWL43-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL43-100-2 | 100*120 | 1.6-3.0 | 225 | ||||
| LNWL43-120-2 | 120*150 | 1.6-3.2 | 20 | 255 | |||
| LNWL43-60-3 | 60*80 | 4300 | 1.6-2.8 | 5 | 25 | 22 | 165 |
| LNWL43-80-3 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL43-100-3 | 100*120 | 1.6-3.0 | 225 | ||||
| LNWL43-120-3 | 120*150 | 1.6-3.2 | 20 | 255 |
Machine Advantage
