Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Fully Automatic |
|---|---|---|---|
| Wire Diameter: | 1.6-3.7mm | Delivery Time: | 25 Days |
| Power: | 22 KW | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | gabion wire mesh machine,gabion box machine |
||

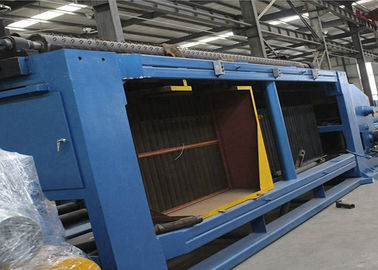

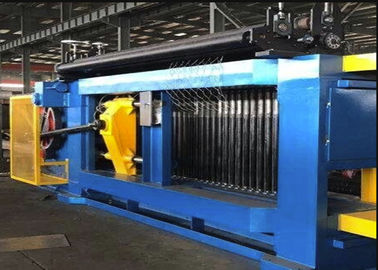

Customized Mesh Size Gabion Mesh Machine For Producing Gabion Mesh Box
Description
Gabion mesh machine is also called heavy duty hexagonal wire mesh machine or gabion box machine,
which is to produce the hexagonal wire mesh for reinforcement stone box use. Our machine has several
models for different sizes of meshes and the maximum netting width is up to 4300mm. We can accept any
special orders from clients.
Technical Parameters
| Wire Diameter | 1.6-3.5mm, side wire 4mm. |
| Mesh Size | 60*80mm or 80*100mm or 100*120mm or 120*150mm |
| Mesh Width | Max. 4300mm |
| Twisted number | 3 or 5 |
| Main Drive Shaft Speed | 25r/min |
| Motor | 30KW |
| Speed | 195m/h, PLC control |
| Voltage | as your request. |
| Weight | 16T |
| Note: The machine will need one 40 feet open container for shipping | |
